Fiat Buyers Guide

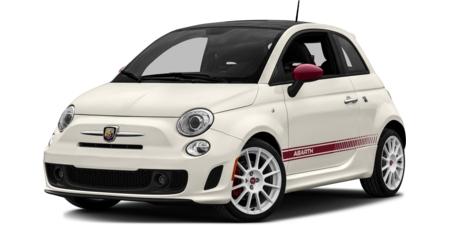

 2013 Fiat 500 Abarth Hatchback

*
MSRP: $22,095
Invoice: $21,233

Gas Mileage:
CTY: 28    HWY: 34    CMB: 31
Engine/Fuel: 4 Cyl Gas
Transmission: M
Door/Body Style: 2 Door/Family Coupe,HBK
Drive Type: FWD
New model status: Carryover

Prices/Warranty

See the prices and various warranties offered.
  • General
  • MSRP: $22,095
  • Invoice Price: $21,233
  • Destination Charge: $0
  • Warranty
  • Basic (Month): 48
  • Basic (Mileage): 50000
  • Powertrain (Month): 48
  • Powertrain (Mileage): 50000
  • Rust (Month): 144
  • Rust (Mileage):

Engine & Emissions

View engine and emission data on this vehicle.
  • Engines & Emissions
  • intercooled turbo
  • Roadside Assistance Warranty for 48-Months, Unlimited Miles,
  • Turbocharged 1.4-Liter, I4, 16-Valve, 4, SOHC, SEFI Engine; Front/Transverse Mounted With Horsepower Of 160@5500, Torque Of 170@2500, Iron Block and Alloy Cylinder Head
  • Engine
  • Type of Engine: 1.4L I4
  • Displacement (CC): 1368
  • Fuel System: SEFI
  • Horsepower @ RPM: 160@5500
  • Torque @ RPM: 170@2500
  • Turbo: Y
  • Compression ratio: 9.8
  • Cylinders: 4
  • RPM @ Peak Horsepower: 5500
  • Bore X Stroke: 2.83x3.31
  • Fuel Type: Gas

Dimensions

See the interior and exterior dimensions.
  • Exterior Dimensions
  • Track Front: 55.4
  • Track Rear: 55.0
  • Ground Clearance (in): 4.1
  • Overall Length (in): 144.4
  • Overall Width (in): 64.1
  • Overall Height (in): 58.7
  • Wheelbase (in): 90.6
  • Curb weight (lbs): 2512
  • Interior Dimensions
  • Seating capacity - Standard: 4
  • Seating Capacity - Maximum: 4
  • Headroom front (in): 38.9
  • Headroom rear (in): 35.5
  • Hip room front (in): 47.8
  • Hip room rear (in): 42.6
  • Leg room front (in): 40.7
  • Leg room rear (in): 31.7
  • Shoulder room front (in): 49.4
  • Shoulder room rear (in): 46.4

Features

See the features of this vehicle.
  • Exterior Features
  • Bodyside/Cab Step or Running Board: Not listed
  • Bumper Step Up: N/A
  • Front Air Dam: N/A
  • Metallic Paint: N/A
  • Power Sliding Side Van Door: N/A
  • Power Trunk Lid: Not listed
  • Rear Spoiler: Standard
  • Skid Plate or Underbody Protection: N/A
  • Splash or Mud Guards: Not listed
  • Wind Deflector or Buffer for Convertibles: N/A
  • Exterior
    • Automatic Headlights With Automatic Off and Time Delay
    • Automatic High/Low Beam Control Single Projector Beam Halogen Headlights
    • Black Grille, Body Side Moldings, Cladding, Chrome Exterior Door Handles and Chrome Exhaust Pipe
    • Daytime Running Lights
    • Front and Rear Body Color Bumpers
    • Front Foglights
    • Rear Spoiler
  • Heating, Ventilation & Air Conditioning
  • Air Conditioning: Standard
  • Automatic Climate Control: Option
  • Interior Pollen/Particle/Dust Air Filter: Standard
  • Rear Heating, Ventilation & Air Conditioning: Not listed
  • Rear HVAC Ducts: Not listed
  • Rear Seat HVAC Controls: Not listed
  • Heating, Ventilation & Air Conditioning
    • Interior Air Filter
    • Manual Air Conditioning
  • Entertainment
  • Cassette Player: Not listed
  • CD Changer: Not listed
  • CD Player: Standard
  • DVD Player: Not listed
  • Hands Free or Voice Activated Phone: N/A
  • Navigational Aid: Option
  • Radio: Standard
  • Second Row Sound Controls/Accessories: Not listed
  • Subwoofer: Standard
  • Telematic Systems: Option
  • Entertainment, Communication & Navigation
    • AM/FM Radio Seek, Scan and 7 Speakers Total; CD Player; MP3 Player
    • Auxiliary Audio Input Jack
    • Memory Device Reader
    • MP3 Player
  • Instrumentation
  • Battery Gauge: Not listed
  • Clock: Standard
  • Compass: Not listed
  • Cruise Control: Standard
  • Electroluminescent Instrumentation: N/A
  • Gauges: Standard
  • Inside Temperature Gauge: Not listed
  • Intelligent Cruise Control: N/A
  • Night Vision: N/A
  • Oil Gauge: Not listed
  • Outside Temperature Gauge: Standard
  • Service or Maintenance Interval Indicator: Standard
  • Steering Wheel Mounted Controls: Standard
  • Tachometer: Standard
  • Tire Inflation/Pressure Monitor: Standard
  • Trip Computer: Standard
  • Instrumentation
    • Automatic/Delayed Locking and Automatic Headlights
    • Cruise Control
    • Digital Clock
    • Exterior Temperature Gauge
    • Steering Wheel Mounted Controls For Audio and Cruise Control
    • Tachometer
    • Tire Pressure Monitor
    • Trip Computer With Trip Odometer
    • Voice Activated Controls For Audio and Bluetooth(R) Wireless Enabled Devices
    • Warning Lights Include Coolant Temperature, Door Ajar, Electrical System, Key-In-Ignition, Low Fuel and Oil Pressure
  • Lighting
  • Automatic Headlights: Not listed
  • Cornering Lights: Not listed
  • Daytime Running Lights: Standard
  • Fog Lights: Standard
  • Halogen Headlights: Standard
  • Headlight Washers: N/A
  • High Intensity Discharge Headlights: N/A
  • Windshield Wiper Activated Headlights: N/A
  • Roof
  • Power Sunroof/Moonroof: Option
  • Removable/Convertible Top: Standard
  • Sunroof/Moonroof: Option
  • Wheels & Tires
  • Alloy Wheels: Standard
  • Chrome Wheels: Not listed
  • Exterior Rear Mounted Tire Carrier: N/A
  • Full Size Spare Tire: Not listed
  • Interior Spare Tire for SUVs & Vans: Not listed
  • Self Sealing/Run Flat Tires: N/A
  • Steel Wheels: Not listed
  • Underbody Tire Carrier: Not listed
  • Wheels & Tires
    • Alloy Wheels Front 16-in. X 6.5-in. and Rear 16-in. X 6.5-in.
    • front and rear tires P195/45HR16 BSW All-Season
    • Spare Tire Credit/Delete
  • Windows, Mirrors & Wipers
    • Exterior Auto Day/Night/Electrochromic Mirrir
    • Glass Rear Window on Convertible
    • Heated Exterior Mirror
    • Heated Washer System
    • Heated Windshield Glass
    • Interior Auto Day/Night/Electrochromic Mirror
    • Interval Wipers
    • Oversize or Wide Angle Exterior Mirror
    • Power Adjustable Exterior Mirror
    • Power Backlight Window
    • Rain Sensing Wipers
    • Rear Wiper
    • Sliding Rear Pickup Truck Window
    • Tinted Glass
    • Vehicle Speed Sensing Wiper Interval
    • Windshield Wiper De-Icer
  • Windows/Mirrors/Wipers
  • Exterior Auto Day/Night/Electrochromic Mirrir: N/A
  • Glass Rear Window on Convertible: Not listed
  • Heated Exterior Mirror: Standard
  • Heated Washer System: N/A
  • Heated Windshield Glass: N/A
  • Interior Auto Day/Night/Electrochromic Mirror: N/A
  • Interval Wipers: Standard
  • Oversize or Wide Angle Exterior Mirror: N/A
  • Power Adjustable Exterior Mirror: Standard
  • Power Backlight Window: N/A
  • Rain Sensing Wipers: N/A
  • Rear Wiper: Standard
  • Sliding Rear Pickup Truck Window: N/A
  • Tinted Glass: Standard
  • Vehicle Speed Sensing Wiper Interval: N/A
  • Windshield Wiper De-Icer: N/A
  • Windows, Mirrors & Wipers
    • Dual Body Color Folding Power Adjustable Heated Exterior Rearview Mirrors
    • Fixed Intermittent Windshield Wipers
    • Front Power Windows With Front One-Touch Down
    • Front Vanity Mirror
    • Rear Window Defroster
    • Rear Window Fixed Wiper/Washer
    • Tinted Glass

Safety Features

View the built in safety features included.
  • Safety Features
  • Driver Airbag
  • Driver Knee Airbag
  • Front and Rear Side Head Curtain Airbags
  • Front Pretensioners
  • Passenger Airbag
  • Passenger Airbag Cutoff Sensor
  • Seat Mounted Front Side Airbags
  • Side Guard Door Beams
  • Anti-Theft
  • Locking Pickup Truck Tailgate
  • Power Door Locks Operated Via Key and Remote With Automatic Locking
  • Power Liftgate Lock/Unlock Via Multi-Function Remote
  • Vehicle Anti-Theft Via Alarm and Engine Immobilizer
  • Braking & Traction
  • 4-Wheel Anti-Lock Brakes
  • Brake Assistance
  • Front Power 282-mm Ventilated Disc and Rear Power 239-mm Disc Brakes
  • Hill Start Control
  • Rear Limited Slip Differential
  • Traction Control Controlled by Engine Management
  • Vehicle Stability Control System

Read Reviews

Expert opinions you can trust.

*Fuel Economy Guide

Research the yearly spend on gasoline for every Fiat in our database.

  • The fuel economy calculations assume annual mileage of 15,000 miles, 45% of which is highway miles and 55% city miles and fuel costs of $2.79 per gallon. These figures can be adjusted to more accurately reflect your driving style and fuel costs in your area:










*NHTSA Test Results

Get crash test results, service bulletins, and product recalls for every Fiat model.

  •

    Crash Test Data for 2013 Fiat

    Fiat Vehicle Front Star Rating Side Star Rating Rollover Resistance Rating
    Driver Passenger Front Seat Rear Seat
    2013 500 3HB FWD



    Service Bulletins for 2013 Fiat

    2013 FIAT 500
    Bulletin Number: 02-002-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 02-006-14
    Front Suspension Clunk Noise While Making Left And Right Turns This bulletin involves replacing the front strut jounce bumpers. Clunk noise coming from the front suspension. Noise may be more noticeable during cold temperatures below 40┬░F
    Bulletin Number: 02-006-14
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 07-004-12 REV. A
    Attention! Release Of New Engine Coolant Organic Additive Technology (OAT) Chrysler Corporation LLC. has released a new engine coolant for the 2013 model year vehicles and beyond, for all engine applications except the ones listed in the
    Bulletin Number: 07-004-12 REV. A
    Attention! Release Of New Engine Coolant Organic Additive Technology (OAT) Chrysler Corporation LLC. has released a new engine coolant for the 2013 model year vehicles and beyond, for all engine applications except the ones listed in the n
    Bulletin Number: 08-004-15
    FLASH: Battery Electric Vehicle, Multiple System Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Mod
    Bulletin Number: 08-004-15 REVA
    FLASH: Battery Electric Vehicle, Multiple System Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Modul
    Bulletin Number: 08-004-15 REVB
    FLASH: Battery Electric Vehicle, Multiple System Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Mod
    Bulletin Number: 08-014-14
    Flash: Enable Shift Up Indicator This Bulletin involves updating the software in the Instrument Cluster (IC). The customer may notices when trying to select the Gear Shift Indicator ?GSI Shift Up? in personal setting, the shift indicator
    Bulletin Number: 08-014-14
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 08-015-13
    Loss Of Communications With Convergence Telematics Module (CTM) This Bulletin involves replacement of the Convergence Telematics Module (CTM). Customer may experience no response from voice recognition or Bluetooth features. On further i
    Bulletin Number: 08-015-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 08-045-16
    SUBJECT: Flash: Anti Lock Brake (ABS) Module System Enhancements OVERVIEW: This bulletin involves a coordinated update of the Anti-lock Brake System (ABS) module and Regenerative Brake Controller (RBC) module software SYMPTOM/CONDITI
    Bulletin Number: 08-048-14REV.A
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 08-048-14REV.B
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 08-057-15
    Flash: Cruise Misspelled In The Instrument Panel Cluster This bulletin involves reprogramming the Instrument Panel Cluster (IPC) with updated software. The customer may notice the word ?Cruise? misspelled in the IPC.
    Bulletin Number: 08-083-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 08-085-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 08-101-14
    Convergence Telematics Module (CTM) Software Enhancements This bulletin involves inspecting and if required, replacement of the (CTM). The customer may notice that the displays on the TomTom screen may be missing some Battery Electric Vehi
    Bulletin Number: 09-001-13
    Gasoline Engine Diagnostic Inspection Procedure This bulletin provides a procedure to determine repair versus replacement of a gasoline long block engine assembly. This procedure is to be used prior to conducting any engine related repairs
    Bulletin Number: 17-001-14
    Rear Axle Alignment Shims This bulletin is to inform service personnel of the availability of rear axle alignment shims.
    Bulletin Number: 18-007-14 REV. A
    Flash: Engine Crank, No Start and/or Malfunction Indicator Lamp (MIL) Illumination This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software. Customers may complain of an intermitt
    Bulletin Number: 18-007-14REV.A
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 18-007-14 REV. B
    Flash:1.4L Diagnostic And System Improvements This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software. A small number of customers may experience a Malfunction Indicator Lamp (MI
    Bulletin Number: 18-027-15
    CHRYSLER 2012-2013 FIAT 500/ABARTH : THIS BULLETIN SUPERSEDES 18-007-14 REV B. DATED OCTOBER 18,2014 PLEASE REMOVE FROM YOUR FILES. INFORMATION ON THE DIAGNOSTIC AND SYSTEM IMPROVEMENTS WHICH REQUIRES ERASING AND REPROGRAMMING POWER CO
    Bulletin Number: 18-027-15
    Flash:1.4L Diagnostic And System Improvements This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software. A small number of customers may experience a Malfunction Indicator Lamp (MI
    Bulletin Number: 18-027-15 REVA
    Flash:1.4L Diagnostic And System Improvements This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software. A small number of customers may experience a Malfunction Indicator Lamp (MIL
    Bulletin Number: 18-027-15 REV-B
    Flash: 1.4L Diagnostic And System Improvements This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software. Customers may experience one of the following: ? Intermittent fast crank
    Bulletin Number: 18-027-15 REV C
    Flash: 1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest available software. Customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon fu
    Bulletin Number: 18-027-15 REV C
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 18-028-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 18-053-16
    SYMPTOM/CONDITION: Customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further investigation the technician may find that the following Diagnostic Trouble Codes (DTCs) have been set: P1128-00 - Closed
    Bulletin Number: 18-087-15
    Flash: 1.4L System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with new software. A small number of customers may experience one of the following conditions or a Malfunction Indicator Lamp (MIL) i
    Bulletin Number: 18-087-15
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 19-002-15
    CHRYSLER 2012-2015 FIAT 500: SERVICE BULLETIN INFORMATION AND REPAIR PROCEDURE FOR NOISE IN THE STEERING COLUMN WHILE TURNING THE STEERING WHEEL. *LJ
    Bulletin Number: 19-002-15
    Clunking Noise From The Steering Column While Turning The Steering Wheel This bulletin involves replacing the steering intermediate shaft. Clunking, popping, knocking noise from the lower steering column while turning the steering wheel.
    Bulletin Number: 22-004-16
    "WHEEL CLICKING SOUND WHEN MOVING SLOW THIS BULLETIN INVOLVES REPLACING THE INSERTS ATTACHED TO THE WHEEL. THE CUSTOMER MAY DESCRIBE A CLICKING SOUND FROM THE WHEELS PLASTIC TRIM INSERTS WHEN MOVING SLOWLY OR WHEN STOPPED. THE ISSUE IS H
    Bulletin Number: 22-004-16
    Wheel Clicking Sound When Moving Slow This bulletin involves replacing the inserts attached to the wheel. The customer may describe a clicking sound from the wheels plastic trim inserts when moving slowly or when stopped. The issue is he
    Bulletin Number: 23-015-14
    Rear Window Washer Nozzle Drips And/Or Leaks While Driving This bulletin involves installing a check valve and hose assembly behind the rear window washer nozzle. Rear window washer nozzle leaks and/or drips while driving.
    Bulletin Number: 23-015-14
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 23-023-13
    Front And/Or Rear Emblems Bubbling And/Or Fading This bulletin involves replacing the rear FIAT emblem and inspecting and if necessary replacing the front FIAT emblem. Front And/Or Rear Emblems Bubbling And/Or Fading
    Bulletin Number: 23-023-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 23-029-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 23-034-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 68277402A
    Adaptive Cruise Control Sensor 1) If you are replacing this part due to the cluster displaying Clean Radar Sensor in Front of Vehicle or DTC C1266 ACC Sensor Blinded, please verify that there is no blockage in front of the sensor. Blockage
    Bulletin Number: 9002519
    82212076, 82203694 - Fabric Cleaner This "fabric cleaner" is not intended for sale in California, the otc states (Connecticut, Delaware, Massachusetts, Maine, New Hampshire, New Jersey, New York, Pennsylvania, Virginia, and Washington dc
    Bulletin Number: 9003681
    Restraints Information Sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use.
    Bulletin Number: 9003687
    Restraints Remove I-Sheet from packaging. Correct information sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use.
    Bulletin Number: 9003694
    Oil Pump Assembly If error code P06DD present on any Pentastar V6 application, please inspect oil pump for relief valve failure. See photo attached. If valve is found out of place please call Bob Jackson (248) 944-0466 bob.jackson@fcagroup
    Bulletin Number: CSN-N03
    CHRYSLER: ON SOME VEHICLES, TIRE PRESSURE MONITOR (TPM) WAS PROGRAMMED TO LOW TIRE PRESSURE WARNING LAMP AT HIGHER THAN REAR TIRE PRESSURE LEVELS, AND INFORMATION LABEL INDICATES LOWER THAN INTENDED FOR FRONT TIRE PRESSURE. MODEL 2013 FI
    Bulletin Number: RL108213A$
    NAG1 (5A580) Valve Body As per Warranty Bulletin D-13-22, please use R2108213A$ valve body for all Warranty (W), Mopar (M) and Mopar Vehicle Protection (F) claims.~ Assembly also includes Filter (52108325AA) and Gasket (52108332AA).~
    Bulletin Number: SB-18-028-13-A
    FIAT: POWERTRAIN CONTROL MODULE (PCM), WITH NEW SOFTWARE, IS SELECTIVELY ERASED AND REPROGRAMMED DUE TO MALFUNCTION INDICATOR LAMP (MIL) ILLUMINATING AND EVAP SYSTEM SMALL LEAK OR THERMOSTAT RATIONALITY. MODEL 2013 FIAT 500. *PE
    Bulletin Number: SB-18-040-13
    CHRYSLER: A MALFUNCTION INDICATOR LAMP (MIL) ILLUMINATING DUE TO EVAP SYSTEM SMALL LEAK (P0456), THERMOSTAT RATIONALITY (P0128) AND POWERTRAIN CONTROL MODULE (PCM) WITH NEW SOFTWARE NEEDS TO BE ERASED AND REPROGRAMMED, SELECTIVELY. MODEL
    Bulletin Number: Z5091195A$
    RES / RHA / REB radio that supports Bluetooth and Hands-Free For issues with Bluetooth, Hands-Free Calling, and/or Voice Commands, DO NOT replace the radio. Diagnose the Hands-Free Module system (also called the Telematics Module). The T
    2013 FIAT 500E
    Bulletin Number: 08-004-15 REV.A
    CHRYSLER 2013-2015 FIAT 500E: THIS BULETIN SUPERSEDES 08-004-15 DATED JAN. 09, 2015 PLEASE REMOVE FROM YOUR FILES. BULLETIN INFORMATION REGARDING UPDATING MODULES SOFTWARE: VTM, BCM, OBCM, PIM, AND BPCM IF REQUIRED. *LJ UPDATED 8/25/15.
    Bulletin Number: 08-045-16
    Flash: Anti Lock Brake (ABS) Module System Enhancements This bulletin involves a coordinated update of the Anti-lock Brake System (ABS) module and Regenerative Brake Controller (RBC) module software. ┬╖ U0001-00 - CAN C BUS. (Sets in ABS a
    Bulletin Number: 08-045-16
    SUBJECT: Flash: Anti Lock Brake (ABS) Module System Enhancements OVERVIEW: This bulletin involves a coordinated update of the Anti-lock Brake System (ABS) module and Regenerative Brake Controller (RBC) module software. SYMPTOM/CONDITIO
    Bulletin Number: 08-048-14 REV. A
    Flash: Vehicle Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Module (PIM), Battery Pack Control Mo
    Bulletin Number: 08-048-14 REV. B
    Flash: Vehicle Enhancements This bulletin involves updating the software in multiple modules, Vehicle Tracking Module (VTM), Body Control Module (BCM), On-Board Charging Module (OBCM), Power Inverter Module (PIM) and Electric Vehicle Contr
    Bulletin Number: 08-048-16
    FLASH: Electric Vehicle Control Unit (EVCU) System Enhancements This bulletin involves updating the software in the EVCU. A small number of customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon further investigati
    Bulletin Number: 08-048-16
    SUBJECT: FLASH: Electric Vehicle Control Unit (EVCU) System Enhancements OVERVIEW: This bulletin involves updating the software in the EVCU. SYMPTOM/CONDITION: A small number of customers may experience a Malfunction Indicator Lamp (
    Bulletin Number: 08-085-13
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 08-101-14
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: 18-007-14 REV.B
    CHRYSLER: REVISION SERVICE BULLETIN A. SHOULD BE REMOVED FROM FILES . SERVICE BULLETIN HAS BEEN UPDATED REVB. CUSTOMERS MAY EXPERIENCE MALFUNCTION LAMP INDICATOR. *LJ
    Bulletin Number: 18-027-15 Rev. C
    Flash: 1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest available software. Customers may experience a Malfunction Indicator Lamp (MIL) illumination.
    Bulletin Number: 18-053-16
    Flash: 1.4L Diagnostic And System Improvements This bulletin involves reprogramming the Powertrain Control Module (PCM) with the latest available software. Customers may experience a Malfunction Indicator Lamp (MIL) illumination. Upon fu
    Bulletin Number: 22-004-16 REV. A
    Wheel Clicking Sound When Moving Slow This bulletin involves replacing the inserts attached to the wheel The customer may describe a clicking sound from the wheel?s plastic trim inserts when moving slowly or when stopped. The issue is he
    Bulletin Number: 68277402A
    Adaptive Cruise Control Sensor 1) If you are replacing this part due to the cluster displaying Clean Radar Sensor in Front of Vehicle or DTC C1266 ACC Sensor Blinded, please verify that there is no blockage in front of the sensor. Blockage
    Bulletin Number: 9002519
    82212076, 82203694 - Fabric Cleaner This "fabric cleaner" is not intended for sale in California, the otc states (Connecticut, Delaware, Massachusetts, Maine, New Hampshire, New Jersey, New York, Pennsylvania, Virginia, and Washington dc
    Bulletin Number: 9003178
    The steering angle sensor on Fiat 500 is serviced as part of the Electric Power Steering (EPS) steering column not the Clockspring.~ Please refer to section 19 EPS steering column for service procedures.~
    Bulletin Number: 9003681
    Restraints Information Sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use.
    Bulletin Number: 9003687
    Restraints Remove I-Sheet from packaging. Correct information sheet (I-Sheet) has been added to Star Parts. Print I-Sheet for technician use.
    Bulletin Number: 9003694
    Oil Pump Assembly If error code P06DD present on any Pentastar V6 application, please inspect oil pump for relief valve failure. See photo attached. If valve is found out of place please call Bob Jackson (248) 944-0466 bob.jackson@fcagroup
    Bulletin Number: D-13-23
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: D-13-27
    SUMMARY TO BE PROVIDED ON A FUTURE DATE.
    Bulletin Number: RL108213A$
    NAG1 (5A580) Valve Body As per Warranty Bulletin D-13-22, please use R2108213A$ valve body for all Warranty (W), Mopar (M) and Mopar Vehicle Protection (F) claims.~ Assembly also includes Filter (52108325AA) and Gasket (52108332AA).~
    Bulletin Number: S20
    Customer Satisfaction Notification S20 Reprogram Powertrain Control Module The Powertrain Control Module (PCM) software on about 81,000 of the above vehicles may have backup lamp illumination timing that does not meet customer expectations
    Bulletin Number: SR-N51
    FIAT: SEE DOCUMENT SEARCH BUTTON FOR OWNER LETTER. ON SOME VEHICLES, THE HALFSHAFT TO GEARB0X OUTPUT FLANGE FASTENERS MAY LOOSEN AND THE HALFSHAFT(S) MAY DISENGAGE FROM GEARBOX, CAUSING VEHICLE TO POWER. MODELS 2013 500E.
    Bulletin Number: Z5091195A$
    RES / RHA / REB radio that supports Bluetooth and Hands-Free For issues with Bluetooth, Hands-Free Calling, and/or Voice Commands, DO NOT replace the radio. Diagnose the Hands-Free Module system (also called the Telematics Module). The T



    Recalls for 2013 Fiat

    2013 FIAT 500
    NHTSA Campaign ID:POWER TRAIN:AUTOMATIC TRANSMISSION
    Manufacturer:Chrysler (FCA US LLC)
    Manufacture Dates:03/08/2013 - 03/07/2015
    Potential Units Affected:3851

    Defect Description:

    Chrysler (FCA US LLC) is recalling certain model year 2013-2015 Fiat 500 battery electric vehicles manufactured March 8, 2013, to March 7, 2015. The Electric Vehicle Control Unit (EVCU) of the affected vehicles may set a diagnostic trouble code (DTC) that may cause the transmission to unexpectedly shift to neutral.

    Consequence:

    If the vehicle unexpectedly shifts to neutral, the loss of drive could increase the risk of a crash.

    Action:

    Chrysler will notify owners, and dealers will reprogram the EVCU, free of charge. The recall began June 19, 2015. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is R20.
    2013 FIAT 500
    NHTSA Campaign ID:POWER TRAIN:MANUAL TRANSMISSION
    Manufacturer:Chrysler (FCA US LLC)
    Manufacture Dates:06/21/2010 - 01/12/2016
    Potential Units Affected:39185

    Defect Description:

    Chrysler (FCA US LLC) is recalling certain model year 2012-2016 Fiat 500 vehicles manufactured June 21, 2010, through January 12, 2016, equipped with a manual transmission. The clutch diaphragm spring may fracture and fail, causing an inability to switch gears.

    Consequence:

    If the clutch diaphragm spring fails, the driver may not be able to shift gears or the vehicle may lose motive power, increasing the risk of a crash.

    Action:

    The remedy for this recall will include the installation of a clutch pedal limiter and a clutch pedal switch. The recall began on November 10, 2016. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is S34.
    2013 FIAT 500E
    NHTSA Campaign ID:ELECTRICAL SYSTEM: BATTERY: PROPULSION SYSTEM
    Manufacturer:Chrysler (FCA US LLC)
    Manufacture Dates:03/22/2012 - 01/29/2016
    Potential Units Affected:16584

    Defect Description:

    Chrysler (FCA US LLC) is recalling certain model year 2013-2016 Fiat 500e vehicles manufactured March 22, 2012, to January 29, 2016. The power inverter module (PIM) may experience voltage spikes which can cause the propulsion system to shut down and loss of motive power.

    Consequence:

    Loss of motive power can increase the risk of a crash.

    Action:

    Chrysler will notify owners, and dealers will update the PIM software, free of charge. The recall began on July 5, 2016. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is S26.
    2013 FIAT 500E
    NHTSA Campaign ID:ELECTRICAL SYSTEM:BATTERY
    Manufacturer:Chrysler (FCA US LLC)
    Manufacture Dates:03/27/2012 - 11/01/2014
    Potential Units Affected:5660

    Defect Description:

    Chrysler (FCA US LLC) is recalling certain model year 2013-2015 Fiat 500 EV vehicles manufactured March 27, 2012, to November 1, 2014. If the vehicle goes in to limp home mode, incompatible software between Electric Vehicle Control Unit (EVCU) and Battery Pack Control Module (BPCM) may cause the electric propulsion system to fully shut down.

    Consequence:

    An electric propulsion system shut down will cause a stall-like condition, increasing the risk of a crash.

    Action:

    Chrysler will notify owners, and dealers will update the vehicle software to ensure compatability between components, free of charge. The recall began on May 21, 2015. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is R15.
    2013 FIAT 500E
    NHTSA Campaign ID:POWER TRAIN
    Manufacturer:Chrysler Group LLC
    Manufacture Dates:12/16/2012 - 08/13/2013
    Potential Units Affected:491

    Defect Description:

    Chrysler is recalling certain model year 2013 Fiat 500e electric vehicles manufactured December 16, 2012, through August 13, 2013. The half shaft joints may loosen and separate causing noise and a loss of driving capability.

    Consequence:

    A loss of driving capability increases the risk of a crash.

    Action:

    Chrysler will notify owners and Fiat dealers will replace the fasteners attaching the half shaft inboard joints, free of charge. The recall began on September 4, 2013. Owners may contact Fiat at 1-888-242-6342. Chrysler's recall number is N51.
    2013 FIAT 500E
    NHTSA Campaign ID:ELECTRICAL SYSTEM: BATTERY: PROPULSION SYSTEM
    Manufacturer:Chrysler Group LLC
    Manufacture Dates:09/24/2012 - 04/04/2014
    Potential Units Affected:4141

    Defect Description:

    Chrysler Group, LLC (Chrysler) is recalling certain model year 2013-2014 Fiat 500e Battery Electric Vehicles (BEV) vehicles manufactured September 24, 2012, through April 4, 2014. The affected vehicles have cooling plates for the Power Inverter Module (PIM) that may leak coolant into areas of the high voltage circuitry, resulting a short circuit that could cause the related service fuse to blow.

    Consequence:

    If the service fuse blows, the vehicle would have a loss of propulsion while driving, increasing the risk of a crash.

    Action:

    Chrysler will notify owners, and dealers will replace the PIM, free of charge. The recall began in July 2014. Owners may contact Chrysler customer service at 1-800-853-1403. Chrysler's number for this recall is P23.

*Green Vehicles

Find the Fiat models that are the cleanest and most fuel efficient.

  • The Green Vehicle Guide will help you find the most fuel-efficient Fiat for your needs.

    California emissions requirements differ from the federal requirements, and therefore selecting ALL STATES may produce multiple listings for the same vehicle.









*Monthly Payment Calculator

Find a car or truck made by Fiat that fits your budget by using our monthly payment calculator.
  • Make your selections in the boxes below and click the "Generate List" button to see a list of Fiat cars and trucks that fit your monthly budget.
