Mazda Buyers Guide

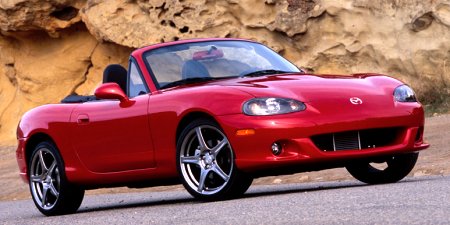

2004 Mazda MAZDASPEED MX-5 MIATA
MSRP: $25,730
Invoice: $23,739
Gas Mileage:
CTY: 20 HWY: 26 CMB: 22
Engine/Fuel: 4 Cyl
Transmission:
Door/Body Style: 2 Door/Sports Car/Convertible,CVT
Drive Type:
Prices/Warranty
See the prices and various warranties offered.- General
- MSRP: $25,730
- Invoice Price: $23,739
- Destination Charge: $0
- Warranty
- Basic (Month):
- Basic (Mileage):
- Powertrain (Month):
- Powertrain (Mileage):
- Rust (Month):
- Rust (Mileage):
Engine & Emissions
View engine and emission data on this vehicle.- Engines & Emissions
- Turbocharged 1.8-Liter, I4, 16-Valve, DOHC, MPFI Engine, Front/Longitudinal Mounted With Horsepower Of 178@6000 and Torque Of 166@4500, Iron Block and Alloy Cylinder Head
- Engine
- Type of Engine: 1.8L I4
- Displacement (CC): 112
- Fuel System: MPFI
- Horsepower @ RPM: 178@6000
- Torque @ RPM: 166@4500
- Compression ratio: 9.5
- Cylinders: 4
- Bore X Stroke: 3.27x3.35
Dimensions
See the interior and exterior dimensions.- Exterior Dimensions
- Track Front: 55.7
- Track Rear: 56.7
- Ground Clearance (in): 4.0
- Overall Length (in): 155.7
- Overall Width (in): 66.1
- Overall Height (in): 48.0
- Wheelbase (in): 89.2
- Curb weight (lbs): 2529
- Interior Dimensions
- Seating capacity - Standard: 2
- Seating Capacity - Maximum: 2
- Headroom front (in): 37.1
- Hip room front (in): 49.2
- Leg room front (in): 42.8
- Shoulder room front (in): 49.7
Features
See the features of this vehicle.- Exterior
- Delayed Courtesy Light
- Front Halogen Foglights
- Projector Beam Low Beam Halogen Headlights
- Rear Spoiler
- Manual Air Conditioning
- Rear Window Defroster
- Bose(R) AM/FM Radio With 225 Watts, Speed Sensitive Volume Control, Seek/Scan and 6 Speakers Total; 6-Disc CD Changer
- Power Radio Antenna
- Windblocker(TM) Wind Deflector For Convertibles With 2 Integral Audio Speakers
- Alloy Trim Located On Doors Handles, Instrument Panel, HVAC Bezels and Foot Pedals
- Digital Clock
- Oil Pressure Gauge
- Tachometer
- Manual Soft Convertible Top
- Compact Spare Tire
- Racing Hart Alloy Wheels, 17-In. X 7-In.
- SBRP205/40R17 80W Toyo Proxes R28 High Performance Tires
- Wheel Locks
- Dual Body Color Power Adjustable Folding Exterior Rearview Mirrors
- Fixed Intermittent Windshield Wipers
- Front Dual Illuminated Vanity Mirrors
- Front Dual Sunvisors
- Front Tinted Glass
- Glass Rear Window On Convertible
- Power Windows With Driver One-Touch Down
Safety Features
View the built in safety features included.- Safety Features
- Driver Airbag With Dual Stage Deployment
- Front Dual 3-Point Seatbelts
- L A T C H
- Passenger Airbag Cutoff Switch
- Passenger Airbag With Dual Stage Deployment
- Warning Lights Include Parking Brake, High Beam, Check Engine, Oil Pressure, Battery Charge, Fasten Seatbelts and Airbag Readiness
- Anti-Theft
- Power Door Locks
- Vehicle Anti-Theft Via Engine Immobilizer
- Braking & Traction
- 4-Wheel Anti-Lock Brakes
- Front Power 269-mm Ventilated Disc and Rear Power 277-mm Solid Disc Brakes
